Amtrak, Zoo-to-Paoli Traction Power Upgrades

Burns leads engineering design and construction phase design support for upgrades to Amtrak’s century-old power infrastructure between Philadelphia and Paoli, Pennsylvania

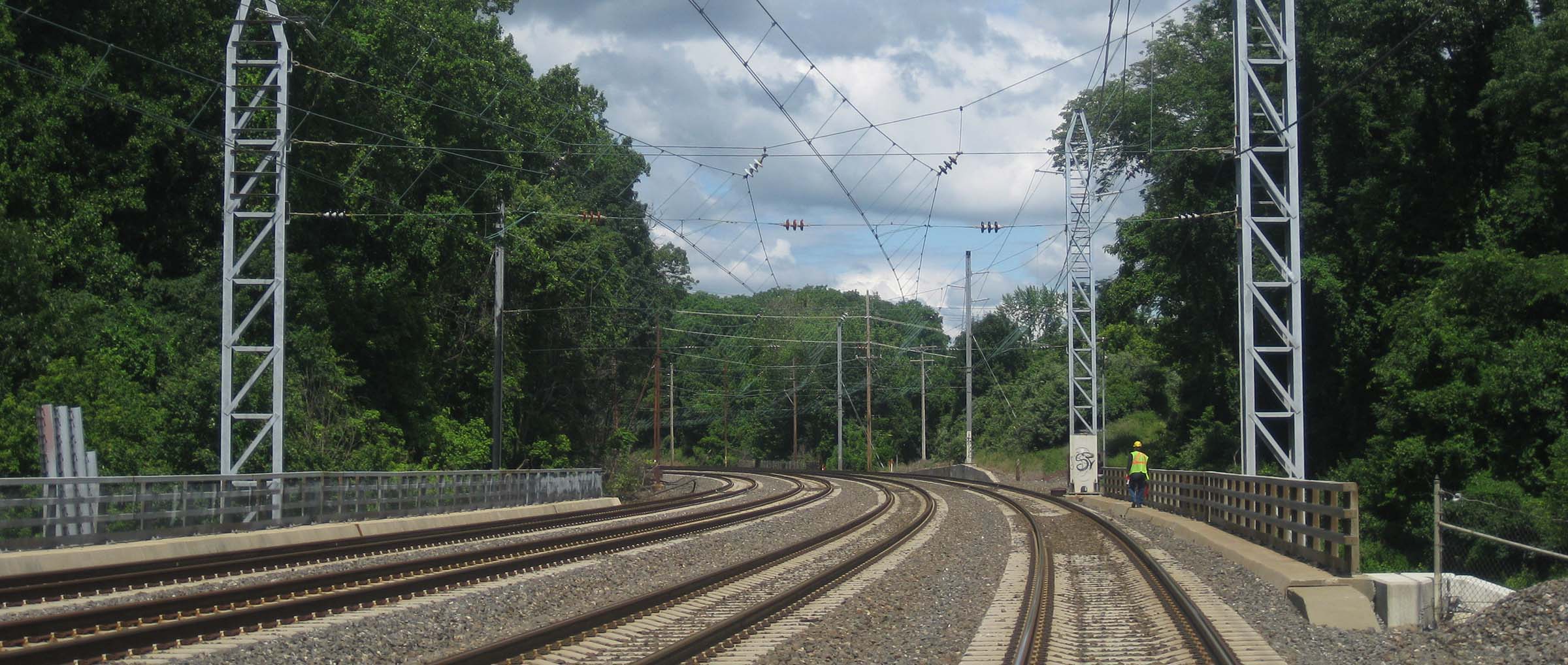

The 19-mile stretch of electrified track from the Philadelphia Zoo to Paoli remains Amtrak’s longest distance between power substations along the New York-Washington-Harrisburg branches of the national railroad.

Amtrak is overhauling the transmission power system along the right of way to increase power reliability and efficiency, improving rail operations while maintaining the system’s state of good repair. Additional project benefits include:

• Improves service reliability for Amtrak and SEPTA customers
• Increases power and efficiency along a critical segment of the Keystone Line
• Replaces aging and inaccessible transmission lines not currently on Amtrak property
• Upgrades Bryn Mawr switching substation to a modern substation

Burns is leading design and construction oversight for two 138-kv transmission lines and a new 138-kv to 12-kv traction power substation. Tasks include:

• Conversion of the existing Bryn Mawr switching station to a 138-kv to 12-kv step-down substation
• Upgrades to the traction power substations in Paoli and near the Philadelphia Zoo
• Replacement of catenary structures with new steel structures to support two new 138-kv transmission lines
• Design of a redundant 100-Hz signal power distribution system
• Relocation of ancillary facilities, including 34-kV utility distribution line, independent fiber optic network, and cellular phone antenna infrastructure
• Civil engineering reviews, including historic, environmental and archaeological analyses
• Coordination with local municipalities and stakeholders through a community outreach program
• Phasing services to ensure electrification of the right of way is not disturbed during construction

The program is estimated to complete construction in 2035.
